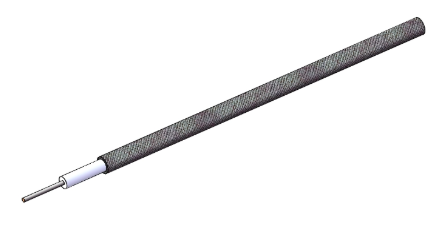

Center Conductor Diameter

0.0113 in

Dielectric Diameter

0.0340 in

Outer Conductor Diameter

0.0470 in

MATERIALS

Center Conductor Material

SPC

Dielectric Material

PTFE

Outer Conductor Material

Copper-Tin Composite

RoHS Compliant

Yes

MECHANICAL CHARACTERISTICS

Minimum Temperature

?55 °C

Maximum Temperature

+200 °C

Inside Bend Radius (Minimum)

0.125 in

Weight

0.47 lbs

per 100 ft

ELECTRICAL CHARACTERISTICS

Nominal Impedance

50.0 ?

Nominal Impedance Margin

±2.0 ?

Velocity of Propagation

70.00%

Shielding Effectiveness

>90 db

Voltage Withstanding

2000 VRMS @ 60 Hz

Continuous Working Voltage

800 VRMS max

Maximum Operating Frequency

116 GHz

Attenuation

FREQUENCY

DB / 100 FT TYPICAL

0.5 GHz

28 db

1.0 GHz

39 db

5.0 GHz

90 db

10.0 GHz

130 db

18.0 GHz

180 db

26.5 GHz

225 db

40.0 GHz

286 db

50.0 GHz

328 db

65.0 GHz

385 db

90.0 GHz

470 db

Power

FREQUENCY

WATTS CW @ 20 °C (MAX)

0.5 GHz

45 W

1.0 GHz

31 W

5.0 GHz

13 W

10.0 GHz

9.3 W

18.0 GHz

7 W

26.5 GHz

5.6 W

40.0 GHz

4.4 W

50.0 GHz

4 W

65.0 GHz

3.4 W

90.0 GHz

2.8 W
